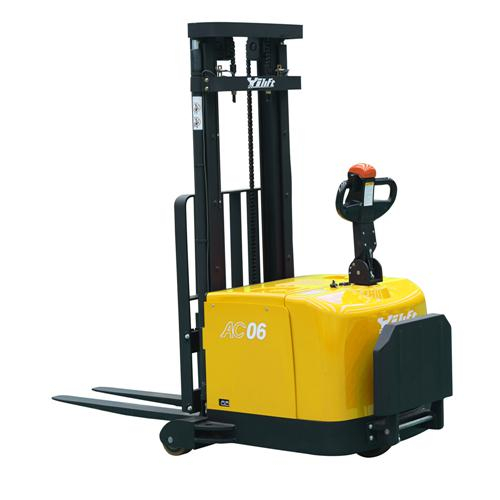

Capacity:600-1600kg,Lifting Height:1400-4500mm
1.Electronic power steering system
2.Two-way magnetic valve,three drop speed mode.
3.Drive unit floating bodies with patent design.
4.AC driving system,no carbon brush,maintenance free.
5.USA CURTIS driving controller.
6.Automatic lifting limit,proximity switch.
7.Cuve automatic deceleration devices,more safer.
8.Goods high position,vehicle automatic deceleration.
9.Stepless speed control system,safe and quiet.
| Model |
| CBSY06E | CBSY12E | CBSY12FE | CBSY16E | CBSY16FE |
| Type |
| Counterbalanced | Counterbalanced | Counterbalanced | Counterbalanced | Counterbalanced |
| Mast type |
| 2-Stage STD | 2-Stage STD | Full free 2-Stage | 2-Stage STD | Full free 3-Stage |
| Load capacity | kg | 600 | 1200 | 1200 | 1500 | 1600 |
| Load center | mm | 500 | 500 | 500 | 500 | 500 |
| Wheel base | mm | 794 | 1179 | 1179 | 1529 | 1529 |
| Operating type |
| Walkie / Stand On | Walkie / Stand On | Walkie / Stand On | Walkie / Stand On | Walkie / Stand On |
| Wheels |
|
|
|
|
|
|
| Wheels type |
| PU | PU | PU | PU | PU |
| Wheel quantity |
| 1/0/2 | 1/0/2 | 1/0/2 | 1/0/2 | 1/0/2 |
| Driving wheel/Balance wheel/Bearing wheel |
| Dimension |
|
|
|
|
|
|
| Standard lift height | mm | 1400/2000/2500/
3000/3300 | 1400/2000/2500/
3000/3300/3600 | 2500/3000/3300 | 1400/2000/2500/
3000/3300/3600/4000 | 3700/3900/4200/4500 |
|
| Lowered fork height | mm | 55 | 55 | 55 | 55 | 55 |
| Mast Lowed height | mm | 1230/1580/1780/
2030/2130 | 1230/1580/1780/
2030/2130/2300 | 1830/2080/2180 | 1230/1580/1780/
2030/2130/2330/2545 | 1817/1917/2002/2102 |
|
| Fork size(length/width/ | mm | 1070/100/40 | 1070/100/40 | 1070/100/40 | 1070/100/40 | 1070/100/40 |
| thickness) |
| Overall length | mm | 2240/2660 | 2502/3012 | 2502/3012 | 2942/3362 | 2942/3362 |
| Overall width | mm | 1015 | 1015 | 1015 | 1015 | 1015 |
| Min.Turning radius | mm | 971 | 1352/1852 | 1352/1852 | 1808/2200 | 1808/2200 |
| Min.Aisle width for pallets | mm | 2346/2822 | 2685/3175 | 2685/3175 | 3140/3520 | 3140/3520 |
| 800×1200 |
| Min.Aisle width for pallets | mm | 2379/2844 | 2715/3195 | 2715/3195 | 3160/3538 | 3160/3538 |
| 1000×1200 |
| Min.ground clearance | mm | 80 | 80 | 80 | 80 | 80 |
| Performance |
|
|
|
|
|
|
| Travel speed,laden/unladen | km/h | 5/5.5 | 5/5 | 5/5 | 5/5 | 5/5 |
| Lift speed,laden/unladen | mm/s | 130/230 | 130/230 | 130/230 | 130/230 | 130/230 |
| Lowering speed,laden/ | mm/s | 130/230 | 130/230 | 130/230 | 130/230 | 130/230 |
| unladen |
| Gradeability,laden/unladen | % | 5/7 | 5/7 | 5/7 | 5/7 | 5/7 |
| Electrical configuration |
|
|
|
|
|
|
| Drive motor / Lift motor / | KW | AC1.5/DC3/DC0.15 | AC1.5/DC3/DC0.15 | AC1.5/DC3/DC0.15 | AC1.5/DC3/DC0.15 | AC1.5/DC3/DC0.15 |
| Steering motor |
| Battery voltage | V | 24 | 24 | 24 | 24 | 24 |
| Battery capacity | Ah | 270 | 270 | 270 | 270 | 270 |
| Brake |
| Electromagnetic /
Regenerative | Electromagnetic /
Regenerative | Electromagnetic /
Regenerative | Electromagnetic /
Regenerative | Electromagnetic /
Regenerative |
|
| Controller |
| CURTIS | CURTIS | CURTIS | CURTIS | CURTIS |
| Weight |
|
|
|
|
|
|
| Battery weight | kg | 245 | 245 | 245 | 245 | 245 |
| Service weight with battery | kg | 1770 | 1800 | 1930 | 1610 | 1680 |
