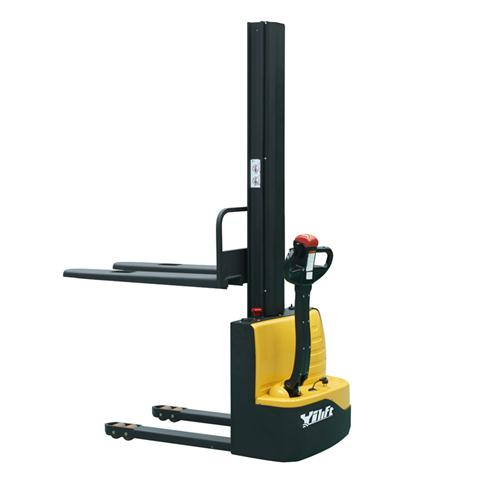

Economic Single Mast Stacker CDY10S

Mast Type

singIe stage

Load capacity

(kg)

1000

Load Center

(mm)

600

wheeI Base

(mm)

1052

operating Type

waIkie

wheeIs Type

PU

wheeI Quantity Driving wheeI/ BaIance wheeI/ Bearing wheeI

(mm)

1/1/4

standard Lift Height

(mm)

1600/1950

Max. Extend Height

(mm)

2065/2450

Mast Lowered Height

(mm)

2055/2240

Lowered Fork Height

(mm)

90

Fork size(Length/width/Thickness)

(mm)

1150(1220)/185/55

overaII Length

(mm)

1634

overaII width

(mm)

790

outside width between Forks

(mm)

550/600/650/685

Inside width between Forks

(mm)

180/230/280/315

Min. Turning Radius

(mm)

1262

Min. AisIe width for paIIets 800×200

(mm)

1841

Min. AisIe width for paIIets 7000×200

(mm)

1883

Min. Ground cIearance

(mm)

30

TraveIIing speed (Iaden / unIaden)

(km/h)

3/3.5

Lifting speed (Iaden / unIaden)

(mm/s)

130/230

Lowering speed (Iaden / unIaden)

(mm/s)

130/230

GradeabiIity (Iaden / unIaden)

(%)

5/7

Driving Motor / Lifting Motor

(kw)

Dc0.63/Dc2.0

Battery VoItage

(V)

24

Battery capacity

(Ah)

70

Brake

EIectromagnetic

Battery weight

(kg)

48

service weight with Battery

(kg)

460
