Electric Lift Table ES Series

Robust structure yet light weight.
Power unit made in Korean, DC 800W.
High quality battery 75Ah/12V.

Quantity:

Model Capacity (kg) Table Size (mm) Table Height (Min./Max.) (mm) Lifting Cyvle Fully Charged Wheel Dia. (mm) Lifting/Lowering Time (second) Overall Size (mm) Net Weight (kg)
ES30 300 1010*520 450/950 65 φ100 15/15 520*1010 140

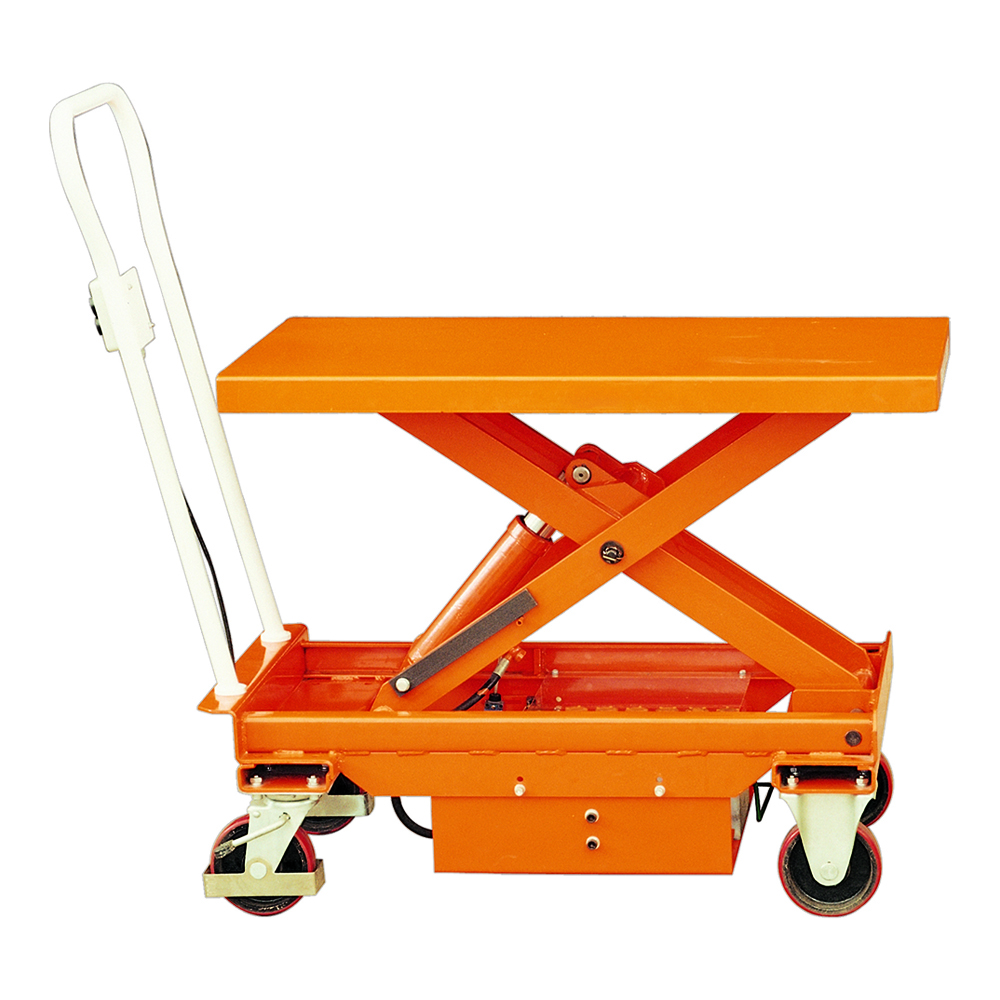

ES50 500 1010*520 450/950 55 φ150 15/15 520*1010 148
ES75 750 1010*520 450/950 45 φ150 15/15 520*1010 154
ES100 1000 1010*520 480/950 40 φ150 15/15 520*1010 169

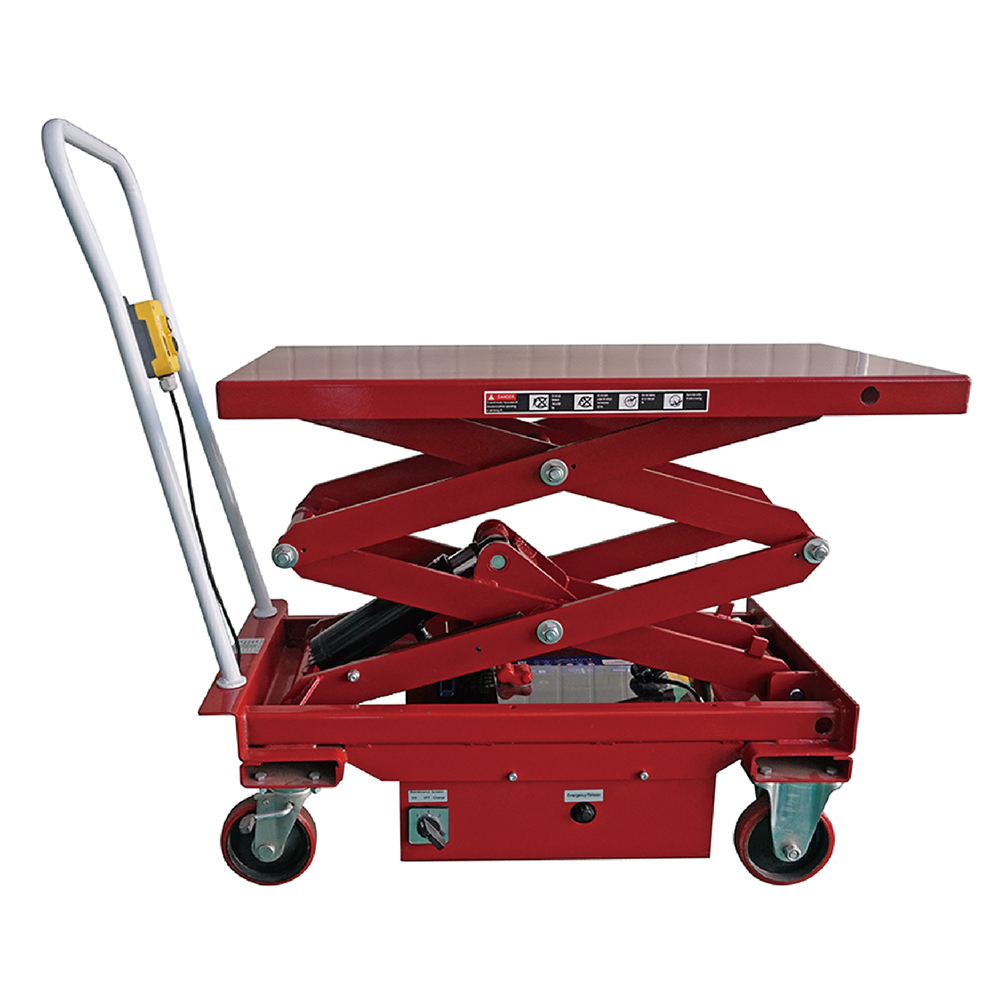

ES30D 300 1010*520 495/1600 45 φ150 15/15 520*1010 183

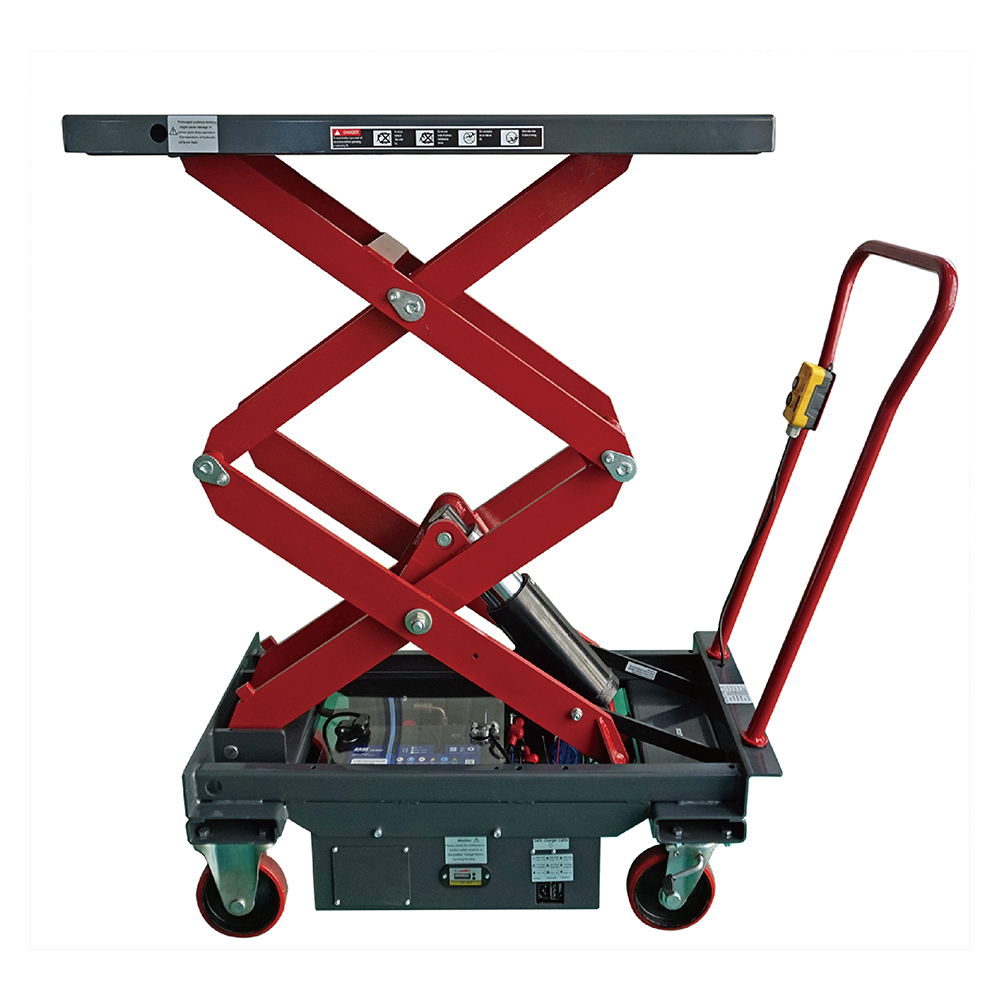

ES50D 500 1010*520 495/1618 40 φ150 15/15 520*1010 198
ES80D 800 1010*520 510/1460 40 φ150 15/15 520*1010 208
