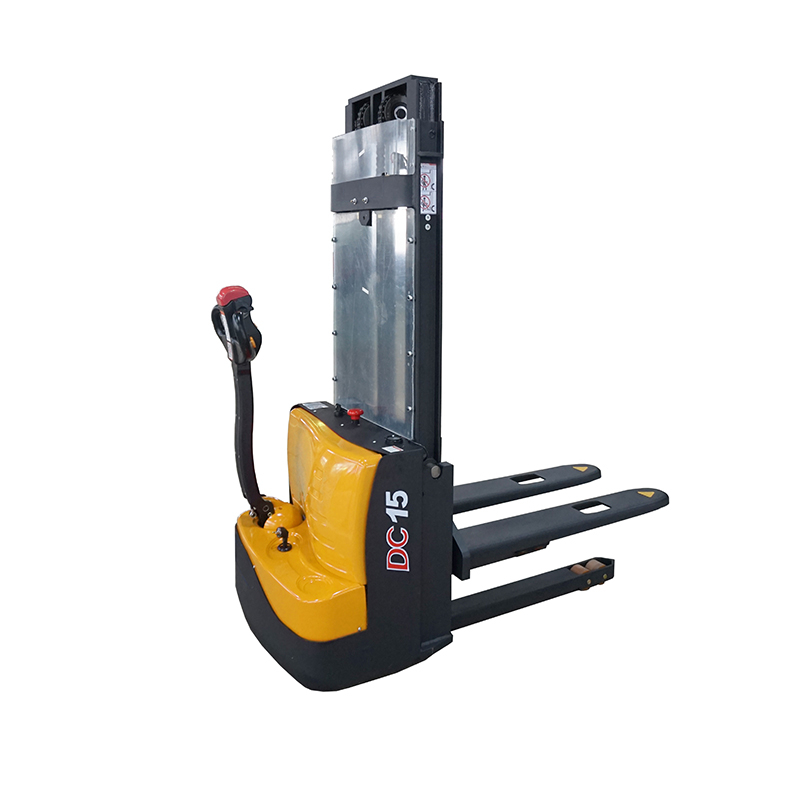

Product Description
Capacity:1500kg,Lifting Height:2000-3300mm,Straddle leg as option.
1.Separately excited motor,strong climbing ability
2.High strength forks
3.Built-in charger
4.Automatic lifting limit,motor and battery life extension
5.Stepless speed control system,safe and quite.
6.Controller with multiple automatic protection
7.Emergency reversing device.
| Model | CDY15D | |
| Mast type | 2-Stage STD | |
| Load capacity | kg | 1500 |
| Load center | mm | 600 |
| Wheel base | mm | 1166 |
| Operating type | Walkie | |
| Wheels | ||
| Wheels type | PU | |
| Wheel quantity Driving wheel/Balancewheel/Bearing wheel | ||
| Dimension | ||
| Standard lift height | mm | 2000/2500/3000/3300 |
| Max extend height | mm | 2515/3015/3515/3815 |
| Mast lowered height | mm | 1560/1810/2060/2210 |
| Lowered fork height | mm | 90 |
| Fork size(length/width/thickness) | mm | 1150（1220）/185/55 |
| Overall length | mm | 1764 |
| Overall width | mm | 790 |
| Outside width between forks | mm | 550/600/650/685 |
| Inside width between forks | mm | 180/230/280/315 |
| Min.Turning radius | mm | 1365 |
| Min.Aisle width for pallets 800×1200 | mm | 1970 |
| Min.Aisle width for pallets 1000×1200 | mm | 1930 |
| Min.ground clearance | mm | 30 |
| Performance | ||
| Travel speed,laden/unladen | km/h | 3/3.5 |
| Lift speed,laden/unladen | mm/s | 100/180 |
| Lowering speed,laden/ | mm/s | 120/120 |
| unladen | ||
| Gradeability,laden/unladen | % | 5/7 |
| Electrical configuration | ||
| Drive motor / Lift motor /Steering motor | KW | DC0.63/DC2.2 |
| Battery voltage | V | 24 |
| Battery capacity | Ah | 85 |
| Brake | Electromagnetic / Regenerative | |
| Weight | ||
| Battery weight | kg | 52 |
| Service weight with | kg | 760 |
