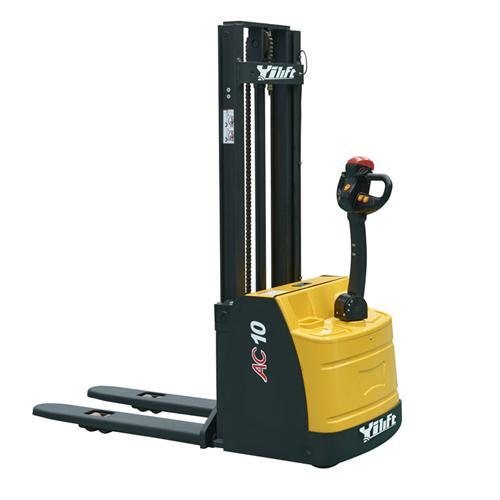

Capacity:1000kg,Lifting Height:2000-3600mm
1.Mechanical steering-Economic,comfortable,more reliable.
2.AC driving system-Quite,without carbon brush and free maintenance
3.Electric lifting-Rapid,efficient,electricity limit switch is STD.
4.Short wheel base-Small turning radius,suitable for narrow space.
5.Energy conservation
6.AC controller-Stepless.strong power,multiple automatic protection.
7.Intelligent control-Regenerative braking,antomatic energy recovery.
Model | CDY10-AC | |
Mast type | 2-Stage STD | |
Load capacity | kg | 1000 |
Load center | mm | 600 |
Wheel base | mm | 1285 |
Operating type | Walkie | |
Wheels | ||
Wheels type | PU | |
Wheel quantity | 2001/1/4 | |
Driving wheel/Balance | ||
wheel/Bearing wheel | ||
Dimension | ||
Standard lift height | mm | 2000/2500/3000/ |
3300/3600 | ||
Lowered fork height | mm | 90 |
Fork size(length/width/ | mm | 1150(1220)/185/55 |
thickness) | ||
Overall length | mm | 1898 |
Overall width | mm | 806 |
Max extend height | mm | 2385/2885/3385/ |
3685/3985 | ||
Mast lowered height | mm | 1550/1800/2050/ |
2200/2350 | ||
Min.Turning radius | mm | 1475 |
Min.Aisle width for pallets 800×1200 | mm | 2045 |
Min.Aisle width for pallets 1000×1200 | mm | 2084 |
Min.ground clearance | mm | 30 |
Performance | ||
Travel speed,laden/ | km/h | 3.5/4 |
unladen | ||
Lift speed,laden/ | mm/s | 130/230 |
unladen | ||
Lowering speed,laden/ | mm/s | 130/230 |
unladen | ||
Gradeability,laden/unladen | % | 5月7日 |
Electrical configuration | ||
Drive motor/Lift motor / | KW | AC0.95/DC2.5 |
Steering motor | ||
Battery voltage | V | 24 |
Battery capacity | Ah | 210 |
Brake | Electromagnetic/ Regenerative | |
Controller | CURTIS 1230 | |
Weight | ||
Battery weight | kg | 190 |
Service weight with | kg | 1010 |
battery |
