| Quantity: | |
|---|---|

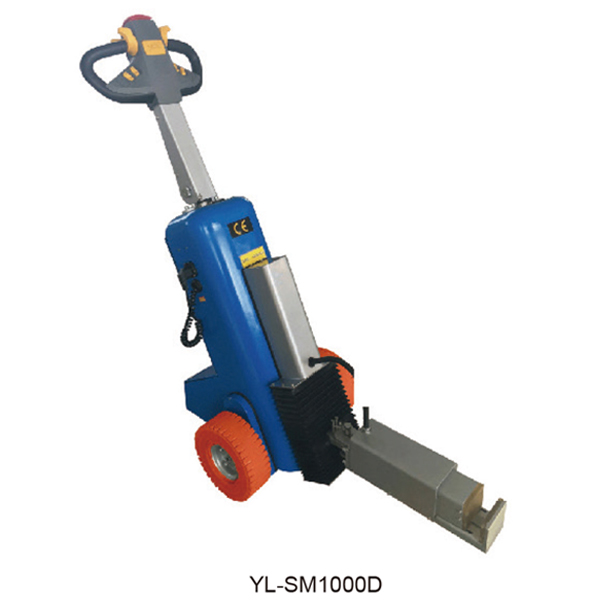

| Model | YL-SM1000N | YL-SM1000D | XFT1000 |
| Capacity (kg) | 1000 | 1000 | 1000 |
| Rated Drawbar Pull (N) | 200 | 200 | - |
| Wheelbase (mm) | 265 | 265 | - |
| Services Weight (kg) | 120 | 120 | 59 |
| Axle Loading, Unladen Front/Rear (kg) | 75/20 | 75/20 | - |
| Tires | Solid Rubber | Solid Rubber | Pneumatic |
| Universal Wheel | Polyurethane | Polyurethane | Polyurethane |
| Tire Size, Front (mm) | Ø250x86 | Ø250x86 | Ø250x85 |
| Tire Size, Rear (mm) | Ø75x32 | Ø75x32 | - |
| Height of Tiller in Drive Position Min./max. (mm) | 850-1200 | 850-1200 | 765-1250 |
| Overall length (mm) | 1150 | 1150 | 740 |
| Overall Width (mm) | 510 | 510 | 590 |
| Ground Clearance (mm) | 40 | 40 | 40 |
| Hook Clamping Height (mm) | 240-320 | 240-320 | 240-320 |
| Hook Type | Maunal | Electric | Maunal |
| Travle Speed slow/fast (km) | 1.2-2/3-3.5 (Adjustable) | 1.2-2/3-3.5 (Adjustable) | 0-5.5 |
| Services brake | Electromagnetic | Electromagnetic | Electromagnetic |
| Drive Motor Rating S2 60min (kw) | 0.4 | 0.4 | 0.4 |
| Battery Voltage, Nominal Capacity (V/Ah) | 2x12/30Ah | 2x12/30Ah | 24/20Ah |
| Battery Weight (kg) | 20 | 20 | 14 |
| Type of Drive Control | DC-Speed Control | DC-Speed Control | DC-Speed Control |
| Sound Level at Driver’s Ear Acc. to EN dB(A) | <70 | <70 | <70 |
| Climbing Ability | <10% | <10% | <10% |
| Model | YL-SM1000N | YL-SM1000D | XFT1000 |
| Capacity (kg) | 1000 | 1000 | 1000 |
| Rated Drawbar Pull (N) | 200 | 200 | - |
| Wheelbase (mm) | 265 | 265 | - |
| Services Weight (kg) | 120 | 120 | 59 |
| Axle Loading, Unladen Front/Rear (kg) | 75/20 | 75/20 | - |
| Tires | Solid Rubber | Solid Rubber | Pneumatic |
| Universal Wheel | Polyurethane | Polyurethane | Polyurethane |
| Tire Size, Front (mm) | Ø250x86 | Ø250x86 | Ø250x85 |
| Tire Size, Rear (mm) | Ø75x32 | Ø75x32 | - |
| Height of Tiller in Drive Position Min./max. (mm) | 850-1200 | 850-1200 | 765-1250 |
| Overall length (mm) | 1150 | 1150 | 740 |
| Overall Width (mm) | 510 | 510 | 590 |
| Ground Clearance (mm) | 40 | 40 | 40 |
| Hook Clamping Height (mm) | 240-320 | 240-320 | 240-320 |
| Hook Type | Maunal | Electric | Maunal |
| Travle Speed slow/fast (km) | 1.2-2/3-3.5 (Adjustable) | 1.2-2/3-3.5 (Adjustable) | 0-5.5 |
| Services brake | Electromagnetic | Electromagnetic | Electromagnetic |
| Drive Motor Rating S2 60min (kw) | 0.4 | 0.4 | 0.4 |
| Battery Voltage, Nominal Capacity (V/Ah) | 2x12/30Ah | 2x12/30Ah | 24/20Ah |
| Battery Weight (kg) | 20 | 20 | 14 |
| Type of Drive Control | DC-Speed Control | DC-Speed Control | DC-Speed Control |
| Sound Level at Driver’s Ear Acc. to EN dB(A) | <70 | <70 | <70 |
| Climbing Ability | <10% | <10% | <10% |
