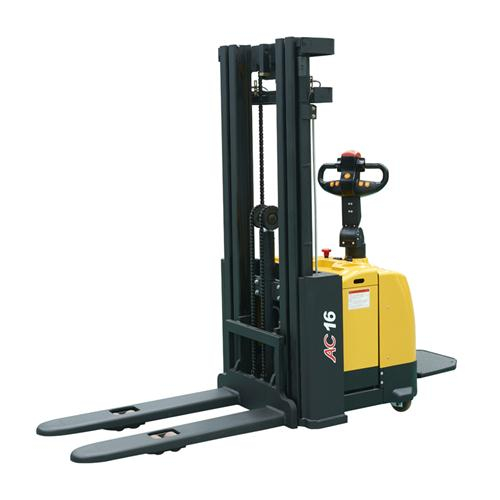

Capacity:1600/2000kg,Lifting Height:1400-5800mm
1.Electronic power steering system
2.Two-way magnetic valve,three drop speed mode.
3.Drive unit floating bodies with patent design.
4.AC driving system,no carbon brush,maintenance free.
5.USA CURTIS driving controller.
6.Automatic lifting limit,proximity switch.
7.Cuve automatic deceleration devices,more safer.
8.Goods high position,vehicle automatic deceleration.
9.Stepless speed control system,safe and quiet.
Model | CDY16E | CDY16FE | CDY16FHE | CDY20E | |
Mast type | Double-Stage | Full free 3-stage | Full free 3-stage | Double-Stage | |
Load capacity | kg | 1600 | 1600 | 1600 | 2000 |
Load center | mm | 600 | 600 | 600 | 600 |
Wheel base | mm | 1325 | 1375 | 1375 | 1325 |
Operating type | Walkie / Stand On | Walkie / Stand On | Walkie / Stand On | Walkie / Stand On | |
Wheels type | PU | PU | PU | PU | |
Standard lift height | mm | 2500/3000/3300 /3600 | 3700/3900/4200 /4500/4700/5000 | 5300/5500/5800 | 2000/2500/3000 /3300/3600/4000 |
Lowered fork height | mm | 90 | 90 | 90 | 90 |
Fork size | mm | 1150(1220)/185/55 | 1150(1220)/185/55 | 1150(1220)/185/55 | 1150(1220)/185/55 |
(length/width/thickness) | |||||
Overall length | mm | 2050/2470 | 2105/2525 | 2105/2525 | 2050/2470 |
Overall width | mm | 856 | 957 | 957 | 856 |
Mast lowered height | mm | 1765/1980/2135 /2335 | 1800/1900/1985/ 2085/2135/2235 | 2520/2590/2690 | 1185/1535 |
Min.Turning radius | mm | 1580/1990 | 1630/2040 | 1630/2040 | 1580/1990 |
Min.Aisle width for pallets800×1200 | mm | 2180/2580 | 2230/2625 | 2230/2625 | 2180/2580 |
Min.ground clearance | mm | 30 | 30 | 30 | 30 |
Travel speed,laden/ | km/h | 5/5 | 5/5 | 5/5 | 4/4.5 |
unladen | |||||
Lift speed,laden/unladen | mm/s | 130/230 | 130/230 | 130/230 | 90/170 |
Lowering speed,laden/ | mm/s | 130/230 | 130/230 | 130/230 | 80/170 |
unladen | |||||
Gradeability,laden/ | % | 5/7 | 5/7 | 5/7 | 5/7 |
unladen | |||||
Drive motor / Lift motor /Steering motor | KW | AC1.5/DC3/DC0.15 | AC1.5/DC3/DC0.15 | AC1.5/DC3/DC0.15 | AC1.5/DC3/DC0.15 |
Battery voltage | V | 24 | 24 | 24 | 24 |
Battery capacity | Ah | 280 | 280 | 280 | 280 |
Brake | Electromagnetic / Regenerative | Electromagnetic / Regenerative | Electromagnetic / Regenerative | Electromagnetic / Regenerative | |
Battery weight | kg | 235 | 235 | 235 | 235 |
Service weight with | kg | 1240 | 1578 | 1610 | 1240 |
