World class quality and performance
Single stage cylinder
No decrease of capacity.
No risk of leakage.
No dangerous dropping of second stage cylingder
Ergonomic design handle
Simple and comfortable operation
Improved safety
Automaticion of self-adjusting stabilizers when lifting loads higher than 400mm for maximum stability and optimum braking.
Quick-lift function doubles the lifting speed when lifting loads less than 250kg.
Easy handling: The compact srtucture with the battery and power unit positioned between body and lifting cylinder resulting in a low centre of gravity and excellent manoeuvrability.
Flexibility: Can work manually when the battery is being charged.
Conforms to EN 1757-4
Model | HB1056M | HB1068M | HB1056E | HB1068E | HB1056EN | HB1068EN | |
Rated Capacity | (kg) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
Max. Fork height | H (mm) | 800 | 800 | 800 | 800 | 800 | 800 |
Min. Fork height | h (mm) | 85 | 85 | 85 | 85 | 85 | 85 |
Overall Fork Width | B (mm) | 560 | 680 | 560 | 680 | 560 | 680 |
Fork length | L (mm) | 1190 | 1190 | 1190 | 1190 | 1190 | 1190 |
Ground clearance | s (mm) | 20 | 20 | 20 | 20 | 20 | 20 |
Front load roller | (mm) | Ø75x75 | Ø75x75 | Ø75x75 | Ø75x75 | Ø75x75 | Ø75x75 |
Steering wheel | (mm) | Ø180x50 | Ø180x50 | Ø180x50 | Ø180x50 | Ø180x50 | Ø180x50 |
Pump strokes to Max.height without load/width rated load | 28/62 | 28/62 | 28/62 | 28/62 | 28/62 | 28/62 | |
Lifting time, without/with rated load | sec | - | 11/19 | 11/19 | 11/19 | 11/19 | |
Battery | 70Ah/12V | 70Ah/12V | 70Ah/12V | 70Ah/12V | |||

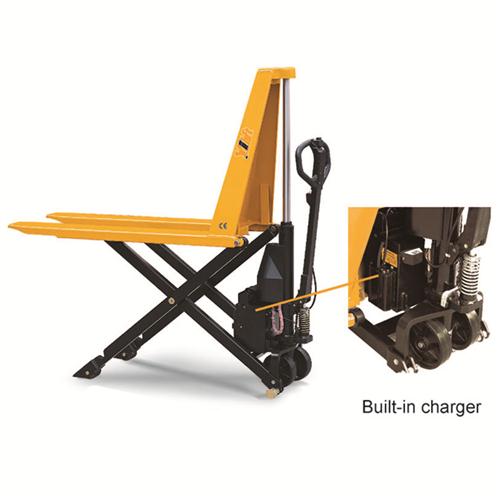

Battery Charger | Separate 10A/12V | Built-in 6A/12V | |||||
Weight without battery | kg | 128 | 133 | 158 | 163 | 159 | 164 |
