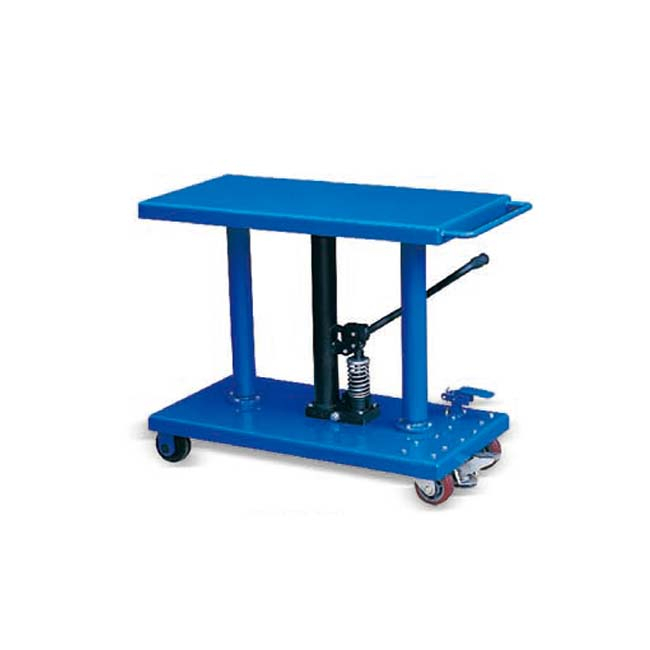

Used as adjustable work bench, welder's positioning table, or leveling table.
Ideal for punch presses, die handling, conveyors, brake presses, loading and unloading trucks and maintenance operations.
Two poly swivel and two rigid castors.
Reliable foot brake.
Model | Capacity (kg/lbs) | Min.Height (mm/inch) | Raised Height (mm/inch) | Table Size (mm/inch) | Diameter of Castor (mm/inch) | Net Weight (kg/lbs) | Post (pcs) |
MD0246 | 90/200 | 740/29 | 1170/46 | 410x410/16x16 | 75/3 | 34.5/76 | No |
MD0548 | 225/500 | 760/30 | 1220/48 | 460x460/18x18 | 100/4 | 69.5/153 | Two |
MD1048 | 455/1000 | 760/30 | 1220/48 | 460x915/18x36 | 100/4 | 90.5/202 | Two |
MD2048A | 900/2000 | 760/30 | 1220/48 | 610x915/24x36 | 100/4 | 102/225 | Four |
MD2048B | 900/2000 | 760/30 | 1220/48 | 815x1220/32x48 | 100/4 | 140/308 | Four |
MD2059A | 900/2000 | 940/37 | 1500/59 | 610x915/24x36 | 150(125)/6 | 187/412 | Four |
MD2059B | 900/2000 | 940/37 | 1500/59 | 815x1220/32x48 | 150(125)/6 | 240/528 | Four |
MD4059A | 1800/4000 | 940/37 | 1500/59 | 610x915/24x36 | 150(125)/6 | 187/412 | Four |
MD4059B | 1800/4000 | 940/37 | 1500/59 | 815x1220/32x48 | 150(125)/6 | 240/528 | Four |
MD6059A | 2700/6000 | 940/37 | 1500/59 | 610x915/24x36 | 150(125)/6 | 187/412 | Four |
MD6059B | 2700/6000 | 940/37 | 1500/59 | 815x1220/32x48 | 150(125)/6 | 240/528 | Four |
