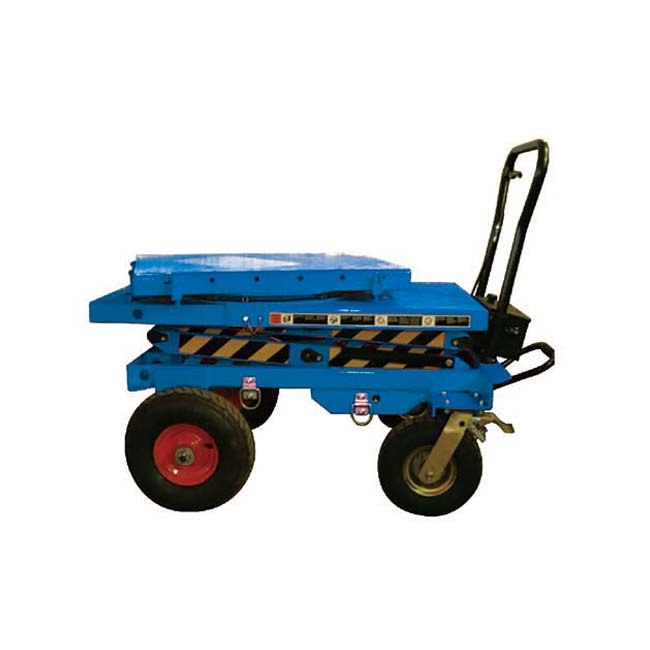

Heavy duty range.
Handle with tool box.
Pneumatic tire with brake system for safe and easy handling over rough terrian.
New design to meet norm EN1570: 1999.
New hydraulic system increases safety and protects your goods, stepless rate of lowering system remains irrespective of the weight of the load.
Model No. | Capacity kg (lb.) | Table Height (Min./Max.) mm (in.) | With Attached Table (Min./Max.) mm (in.) | Table Size mm (in. ) | Overall Size mm (in.) |
HM200 | 220 (440) | 380/780 (15/34.3) | 458/948 (18/37.3) | 700*520 (27.6*20.5) | 922*690*910 (36.3*27.2*35.8) |
HM300 | 300 (660) | 410/1000 (16.1/39.4) | 448/1078 (17.6/42.4) | 850*520 (33.5*20.5) | 1065*690*975 (41.9*27.2*38.4) |
HM300D | 300 (660) | 545/1700 (21.5/66.9) | 630/1785 (24.8/70.3) | 1010*520 (39.8*20.5) | 1270*720*975 (50*28.3*38.4) |
HM500A | 500 (1100) | 545/1110 (21.5/43.7) | 630/1195 (24.8/47) | 1010*520 (39.8*20.5) | 1270*720*975 (50*28.3*38.4) |
HM500B | 500 (1100) | 345/1180 (13.6/46.5) | 423/1258 (16.7/49.5) | 1220*610 (48*24) | 1538*800*975 (60.6*31.5*38.4) |
HM750 | 750 (1650) | 545/1110 (21.5/43.7) | 630/1195 (24.8/47) | 1010*520 (39.8*20.5) | 1270*720*975 (50*28.3*38.4) |
