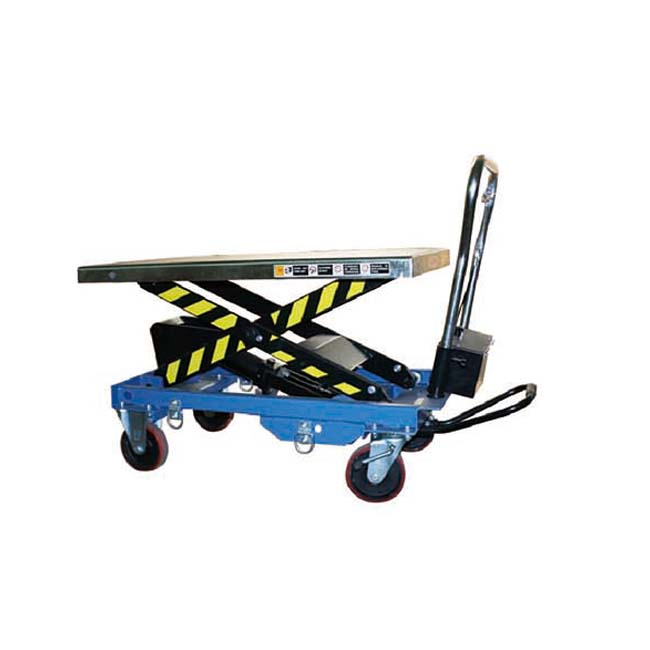

Mobile Lift Tablel BH Series

Heavy duty range.o Handle with tool box.
New design to meet norm EN1570: 1999.

Quantity:
  • Heavy duty range.o Handle with tool box.

  • New design to meet norm EN1570: 1999.

  • New hydraulic system increases safety and protects your goods, stepless rate of lowering system remains irrespective of the weight of the load.

Model No.  Capacity kg  (lb.) Table Height (Min./Max.)   mm (in.) With Attached Table  (Min./Max.)   mm (in.) Table Size mm (in. ) Overall Size  mm (in.)
BH20 200(440) 270/750 (10.6/29.5) 348/828 (13.7/32.6) 700*520 (27.6*20.5) 922*690*910 (36.3*27.2*35.8)
BH30 300( 660) 320/915 (12.6/36) 398/993 (15.7/39.1) 850*520 (33.5*20.5) 1065*690*975 (41.9*27.2*38.4)
BH30D 300( 660) 435/1600 (17.1/63) 520/1685 (20.5/66.3) 1010*520 (39.8*20.5) 1270*520*970 (50*20.5*38.2)
BH50 500 (1100) 435/1000 (17.1/39.4) 520/1085 (20.5/42.7) 1010*520 (39.8*20.5) 1200*520*970 (47.2*20.5*38.2)
BH75 750 (1650) 435/1000 (17.1/39.4) 520/1085 (20.5/42.7) 1010*520 (39.8*20.5) 1270*520*970 (50*20.5*38.2)
BH100 1000 (2200) 445/980 (17.5/38.6) 530/1065 (20.9/41.9) 1010*520 (39.8*20.5) 1270*520*970 (50*20.5*38.2)
