Automatically maintain a load at the ideal height for manual loading and unloading.
Automatically maintain the top of the load at the working height.

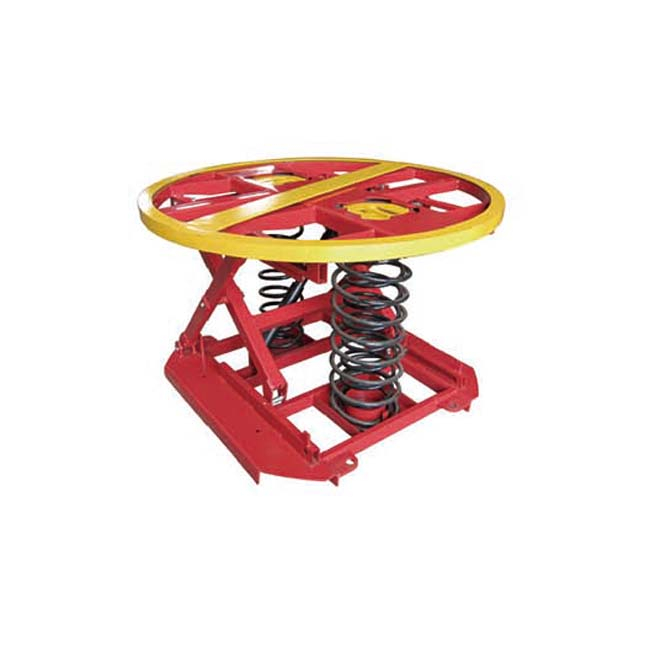

Includes a steel scissor lift mechanism and at least one large compression spring.
The springs are chosen to match the weight and height of a fully loaded pallet.
With a shock absorber to eliminate tendency for the load to bounce on the springs.
|Compressed Height (mm)||240|
|Extended Height (mm)||710|
|Rotation Ring, Outside Dia (mm)||1110|
|Rotation Ring, Inside Dia (mm)||1035|
|Base Frame Length (mm)||1150|
|Base Frame Width (mm)||930|
|With 3 Springs||Large, Middle, Small|
