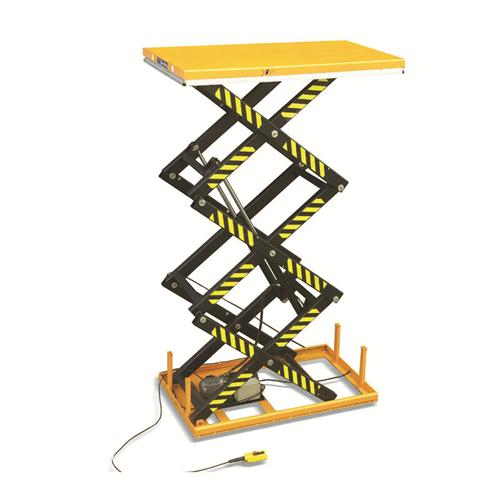

Three Scissor Lift Table HT Series

Quantity:
  • Heavy duty design.

  • Meet EN157O norm and ANSI/ASME safety standard.

  • High quality power unit made in Europe.


Standard Safety Features

  • Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.

  • Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.

  • Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.

  • Safety clearance between scissors to prevent trapping during operation.


Other Standard Features

  • Self lubricating bushings on pivot points.

  • Removable lifting eye to facilitable handling and lift table installation.

ModelHT1000HT2000HT4000HT5000
Capacity  (kg)1000200040005000
Lowered Height  (mm)470560625890
Raised Height  (mm)3000300032005100
Platorm Size  (mm)1700x10001700x10001700x12002980*2000
Base Frame Size  (mm)1600x10001606x10101610x11402980*2000
Lift Time  (sec)35-4550-6070-8090-105
Power Pack380V/50HZ,AC 2.2kw

380V/50HZ,AC 3kw
Net Weight  (kg)4507509102500
