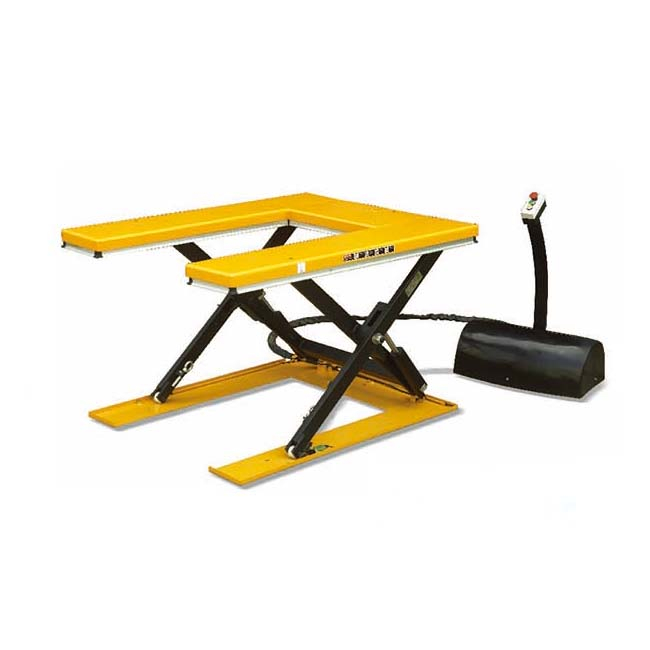

"U"shaped top platform.
"U" shaped table are specially for handling pallets,no need for a pit or load.
They are manufactured to all European safety standards including EN1570:1999.
Remote power pack with pedestal and controls, pretected to IP54.
Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
24V control box with UP and DOWN buttons and emergency stop.
External power pack equipped with a relief valve against overloading and a compensated flow valver for controlling lowering speed.
Hose burst safety valve to stop the lift table lowering in case of hose breakage.
Removable lifting eyes to facilitate handling and installation of the lift table.
Oiless bushings on pivot points.
Quick assembly joint for oil hose.
| Model | HU600 | HU1000 | HU1500 |
| Capacity (kg) | 600 | 1000 | 1500 |
| Max.Height (mm) | 860 | 860 | 860 |
| Collapsed Height (mm) | 85 | 85 | 105 |
| Platform (mm) | 1450x985 | 1450x1140 | 1600x1180 |
| Lifting time (sec) | 25-35 | 25-35 | 30-40 |
| Power Pack | 380V/50HZ,AC 1.1KW | 380V/50HZ,AC 0.75KW | 380V/50HZ,AC 1.5KW |
| Net Weight (kg) | 207 | 280 | 380 |
