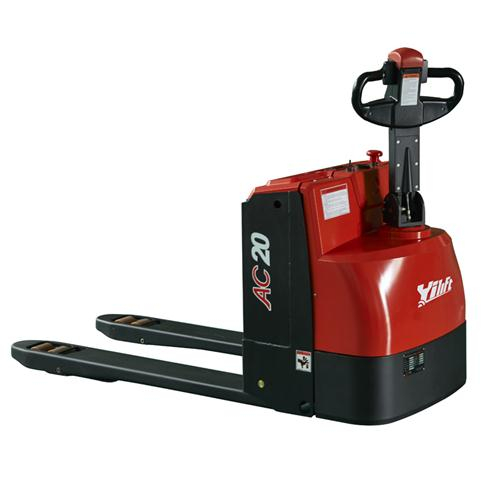

Walkie Electric Pallet Truck CEY20WE with EPS System

Quantity:

• High performance AC driving Motor

• EPS controller

• EPS system as standard, low energy consumption, low noise

• Electromagnetic brake

• Ergonomic own-made handle with safety reversing switch and horn

• 150Ah AGM battery pack.

• Battery discharge indicator with hour meter

• Key switch to limit access to approved personnel

• Intelligent battery charger

Model
CEY20WE
Load capacitykg2000
Load centermm600
Wheel basemm1390
Operating type
Walkie
Wheels

Wheels type
PU
Wheel quantity
1/1/4
Driving wheel/Balance wheel/
Bearing wheel
Driving wheel sizemm248×75
Balance wheel sizemm80×80
Double wheels
Bearing wheel sizemm115×55
Dimension

Min.fork lowered  heightmm85
Max.fork lifting heightmm195
Max.lifting heightmm110
Overall fork widthmm540/600/685
Fork lengthmm1150/1200
Fork widthmm185
Fork thicknessmm55
Overall lengthmm1750
Overall widthmm720
Overall height(With handle)mm1385
Overall height(Without handle)mm850
Min.Turning radiusmm1575
Min.Aisle width for palletsmm1900
800×1200
Min.Aisle width for palletsmm1940
1000×1200
Performance

Travel speed,laden/unladenkm/h4/4
Lift speed,laden/unladenmm/s56/60
Lowering speed,laden/unladenmm/s57/59
Gradeability,laden/unladen%5/7
Electrical configuration

Drive motorKWAC  1.5
Lift motor  KWDC  2.0
Steering motorKWDC  0.15
Battery voltage / capacityV/Ah24/210
Brake
Electromagnetic
/Regenerative
Controller
CURTIS  1230
Weight

Battery weightkg190
Service weight with batterykg600
