1. Small size,light weight,easy to operate;
2. Lithium-ion battery power;
3. Permanent magnet brushless drive and hoist motor,maintenance-free,high efficiency,longer life;
4. Standard lifting limit switch;
5. Open layout,ultra-fast replacement of driving wheels, easy maintenance.

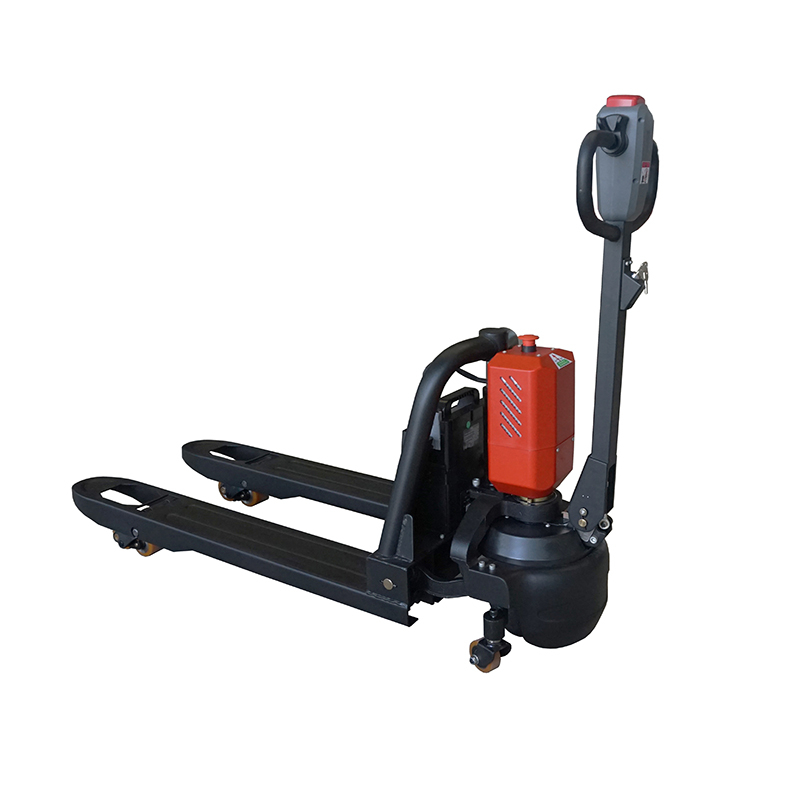

| Model | CEY15L | |
| Load capacity | kg | 1500 |
| Load center | mm | 600 |
| Wheel base | mm | 1166 |
| Operating type | Walkie | |
| Wheels type | PU | |
| Driving wheel size | mm | φ145X54 |
| Bearing wheel size | mm | φ80X30 |
| Balance wheel size | mm | φ80X70 |
| Wheel quantity Driving wheel/Balance wheel /Bearing wheel | mm | 1/2/4 |
| Min.fork lowered height | mm | 85 |
| Max.fork lifting height | mm | 205 |
| Max.lifting height | mm | 120 |
| Outside width between forks | mm | 560//685 |
| Inside width between forks | 240/365 | |
| Fork length | mm | 900/1150/1200 |
| Fork width | mm | 160 |
| Fork thickness | mm | 73 |
| Overall length | mm | 1450 |
| Overall width | mm | 560 |
| Overall height(With handle) | mm | 1160 |
| Overall height(Without handle) | mm | 700 |
| Min.Turning radius | mm | 1450 |
| Min.Aisle width for pallets 800×1200 | mm | 1800 |
| Min.Aisle width for pallets 1000×1200 | mm | 1830 |
| Travel speed,laden/unladen | km/h | 4.5/5.0 |
| Lift speed,laden/unladen | mm/s | 25/40 |
| Lowering speed,laden/unladen | mm/s | 80/55 |
| Gradeability,laden/unladen | % | 5/7 |
| Drive motor /Lift motor | KW | AC0.60/AC0.80 |
| Lithium-ion battery voltage | V | 72 |
| Lithium-ion battery capacity | Ah | 8 |
| Brake | Electromagnetic / Regenerative | |
| Battery weight | kg | 5.2 |
| Service weight with battery | kg | 118 |
