-Stronger motor, Larger battery 12Ah, Low voltage protection.

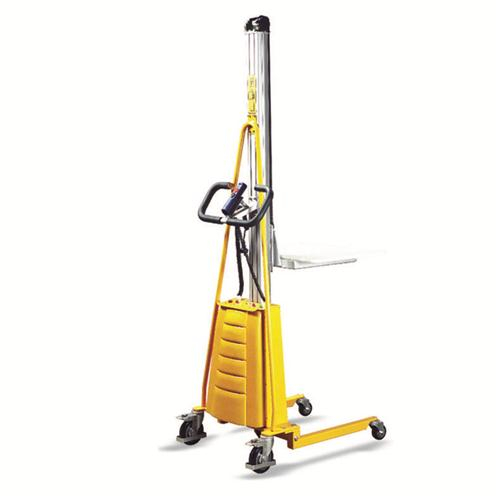

-A range of highly manoeuvrable. lightweight lifts, designed to take the strain out of any lifting job from ground level to over shoulder height, Ideal for use in narrow aisles and confined spaces. Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outless, etc...
-Manual models:Operated via a manual hand winch.Auto brake system prevents uncontrolled lowering.
-Electric models:Automatic electronic overload protection sytem ensures safety. Maintenance free and sealed batteries,automatic charger.
-Quick change attachment options available.
-Conforms to EN1757, CE marked.
Model | M100 | M200 | E100/E100A | E150/E150A | E180 | E200 |
Type | Manual | Electric | ||||
Capacity (kg) | 100 | 200 | 100 | 150 | 180 | 200 |
Load centre (mm) | 235 | 235 | 235 | 235 | 235-250 | 235-250 |
Min.Height (mm) | 1500 | 1500 | 1700 | 1500 | 1500/1700(1200/1800/2000) | 1500/1700(1200/1800) |
Max.Height (mm) | 130 | 130 | 130 | 130 | 130 | 130 |
Platform size (mm) | 470X600 | 470X600 | 470X600 | 470X600 | 470X600 PE(Steel/SUS) | 470X600 PE(Steel/SUS) |
Overall size mm | 840X600 | 870X600 | 870X600 | 870X600 | 920X600 | 920X600 |
X1830 | X1920 | X1990 | X1790 | X1790/1990 | X1790/1990 | |
Load wheel (mm) | Φ75 | Φ75 | Φ75 | Φ75 | Φ75 | Φ75 |
Steering wheel (mm) | Φ125 | Φ125 | Φ125 | Φ125 | Φ125 | Φ125 |
Battery service free | -- | 24v,12Ah | 24v,12Ah | 24v,17Ah | 24v,17Ah | |
Net Weight (kg) | 50 | 60 | 63/66 | 63/66 | 74/77 | 74/77 |
