| Quantity: | |
|---|---|

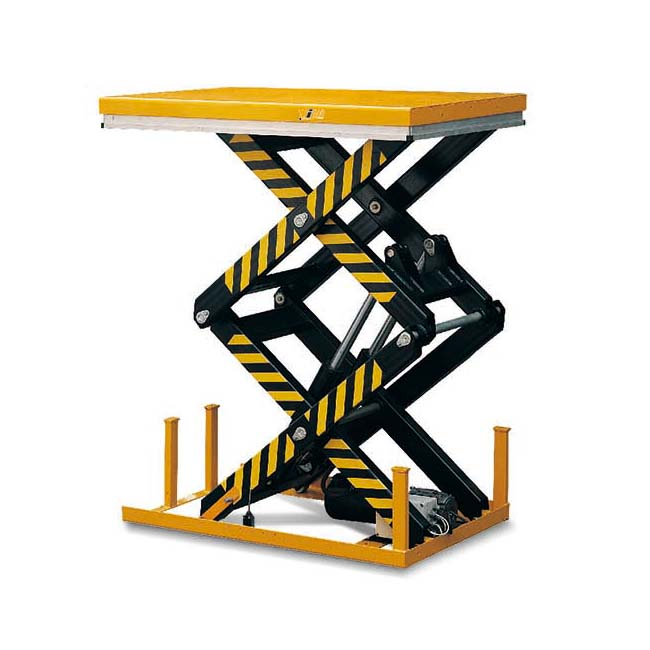

Heavy duty design.
Meet EN1570 norm and ANSI/ASME safety standard.
High quality power unit made in Europe.
Standard Safety Features
Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
Safety clearance between scissors to prevent trapping during operation.
Other Standard Features
Self lubricating bushings on pivot points.
Removable lifting eye to facilitable handling and lift table installation.
| Model | HD1000 | HD2000 | HD4000 |
| Capacity (kg) | 1000 | 2000 | 4000 |
| Lowered Height (mm) | 305 | 360 | 400 |
| Raised Height (mm) | 1780 | 1780 | 2050 |
| Platorm Size (mm) | 820x1300 | 850x1300 | 1700x1200 |
| Base Frame Size (mm) | 640x1240 | 785x1220 | 1600x900 |
| Lift Time (sec) | 35-45 | 35-45 | 55-65 |
| Power Pack | 380V/50HZ,AC 1.1kw | 380V/50HZ,AC 1.5kw | 380V/50HZ,AC 2.2kw |
| Net Weight (kg) | 210 | 295 | 520 |
