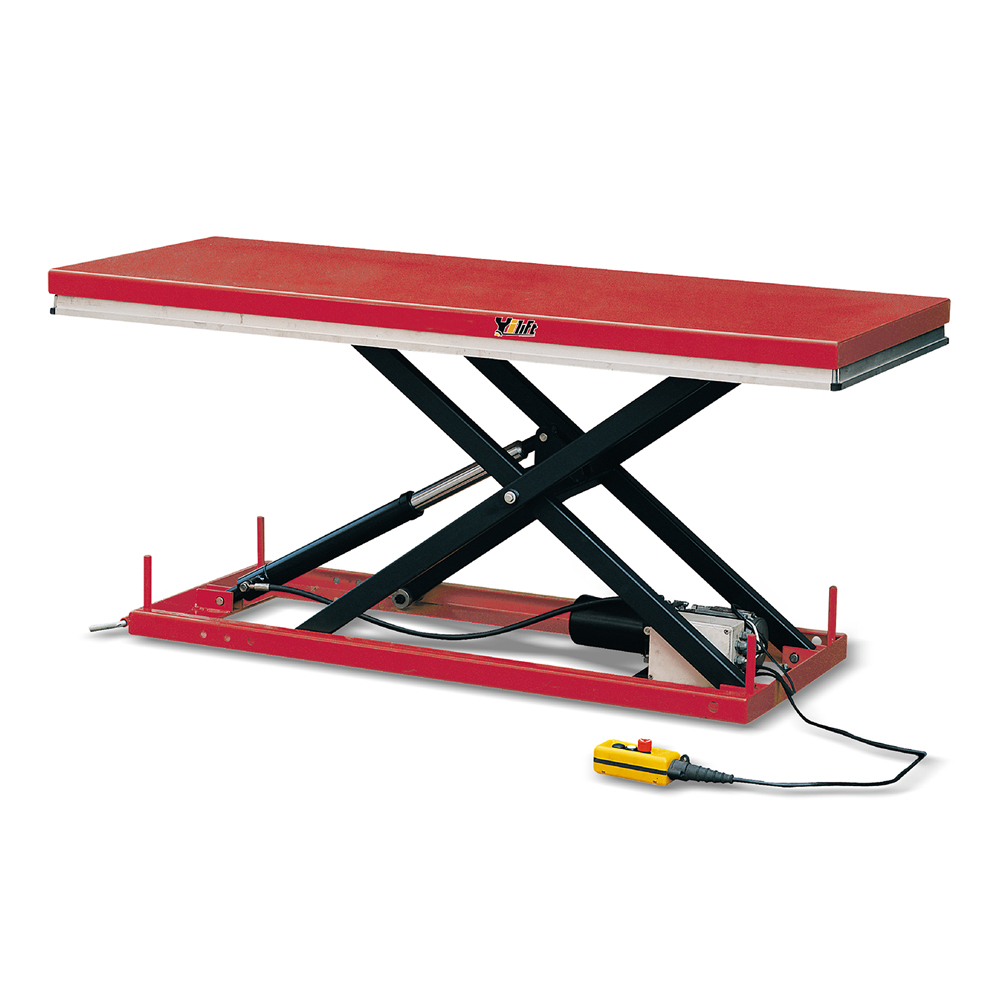

Large Lift Table HW Series

Availability:
Quantity:
Inquire Add to Basket

  • Large platform for special size materials.

  • Meet EN1570 norm and ANSI/ASME safety standard.

  • High quality power unit made in Europe.


Model

HW500L

HW501

HW502

Capacity

(kg)

500

500

500

Lowered Height

(mm)

200

180

180

Raised Height

(mm)

1000

1000

1000

Platform Size

L×W (mm)

800×2000 (standard)

1300×600

1300×800

Base Frame Size

(mm)

680×1615

1210×585

1210×585

Lift Time

(sec)

20~25

20~25

20~25

Power Pack

380V/50HZ, AC 1.1kw

380V/50HZ, AC 0.75KW

380V/50HZ, AC 0.75KW

Net Weight

(kg)

218

121

131
