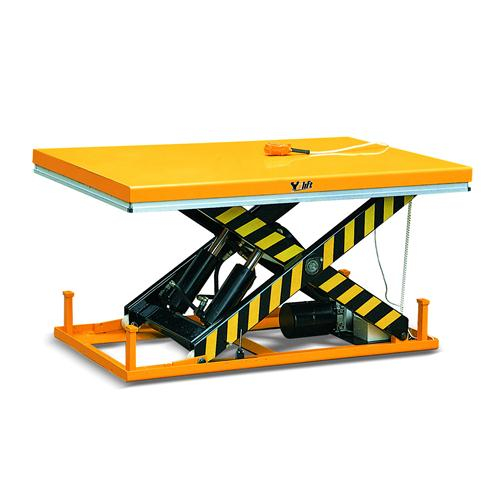

Electric Scissor Lift Table HW Series

Data Sheet:
115-116.pdf

Availability:

Quantity:



Inquire Add to Basket

Product Description

Heavy duty design.
HW series lift tables meet EN norm and ANSI/ASME safety standards.
These modeIs can be used in above-loor or in-loor pit appIications.

Standard Safety Features

Upper pIatform Iifted with aIuminum safety bar preventing descent on contact with obstructions.
Low-tention (24v) controI box with up-down buttons.
InternaI power pack equipped with reIief vaIve against overIoading and compensated low vaIve for controIIedIowering speed.
Heavy duty cyIinders with drainage system and check vaIve to stop the lift table lowering in case of hose burst.
Safety cIearance between scissors to prevent trapping during operation.

Other Standard Features

SeIf Iubricating bushings on pivot points.
Removable lifting eye to facilitable handling and lift table installation.
High quaIity AC power packs are made in Europe.

*Model*	*Capacity* (kg)	*Lowered* *Height* (mm)	*Raised* *Height* (mm)	*Platform Size* (mm)	*Base Frame Size* (mm)	*Lift Time* (s)	*Power* *Pack*	*Net Weight* (kg)

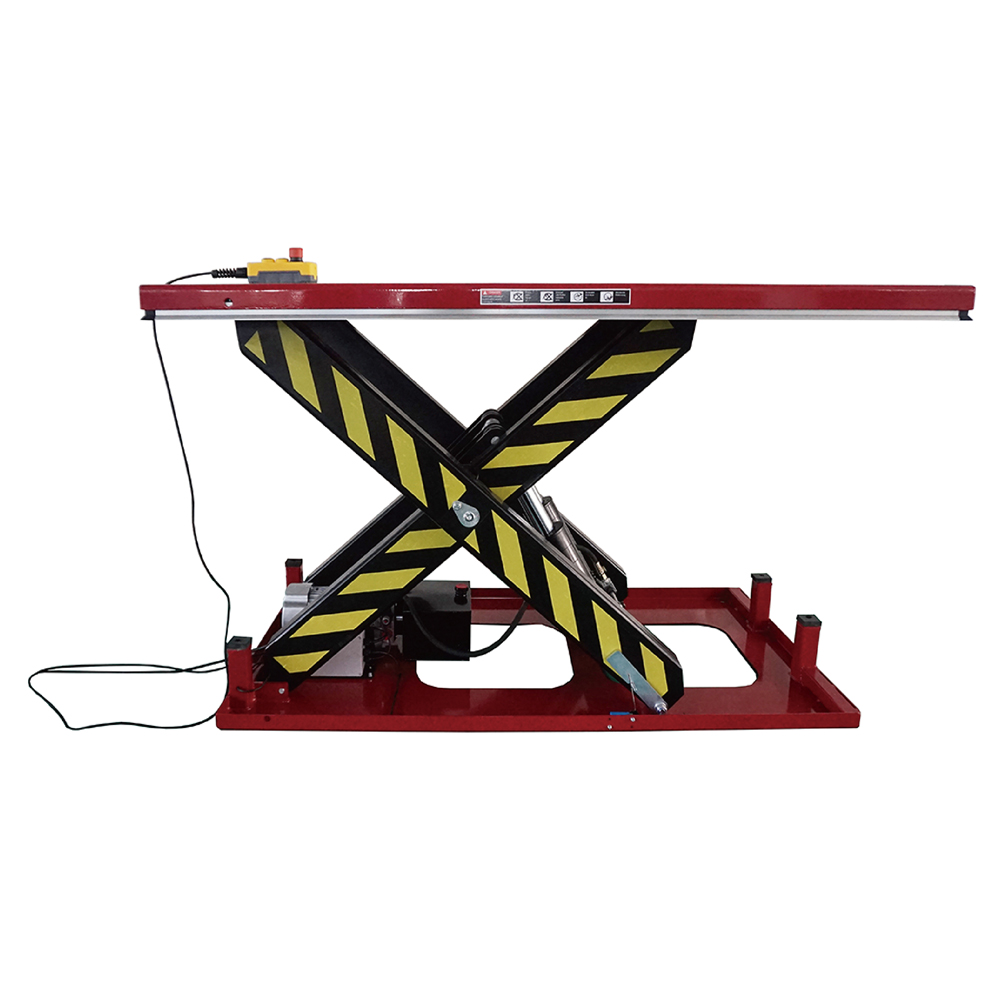

HW1001	1000	205	990	820×1300	640×1240	20~25	380V/50HZ, AC 1.1kw	160
HW1002	1000	205	990	1000×1600	640×1240	20~25	380V/50HZ, AC 1.1kw	215
HW1003	1000	240	1300	850×1700	640×1580	30~35	380V/50HZ, AC 1.1kw	217
HW1004	1000	240	1300	1000×1700	640×1580	30~35	380V/50HZ, AC 1.1kw	230
HW1005	1000	240	1300	850×2000	640×1580	30~35	380V/50HZ, AC 1.1kw	200
HW1006	1000	240	1300	1000×2000	640×1580	30~35	380V/50HZ, AC 1.1kw	240
HW1007	1000	240	1300	1700×1500	1580×1320	30~40	380V/50HZ, AC 1.1kw	310
HW1008	1000	240	1300	2000×1700	1580×1320	30~40	380V/50HZ, AC 1.1kw	430
HW2001	2000	230	1000	850×1300	785×1220	20~25	380V/50HZ, AC 1.5kw	212
HW2002	2000	230	1000	1000×1600	785×1220	20~25	380V/50HZ, AC 1.5kw	237
HW2003	2000	250	1300	850×1700	785×1600	25~35	380V/50HZ, AC 1.5kw	260
HW2004	2000	250	1300	1000×1700	785×1600	25~35	380V/50HZ, AC 1.5kw	285
HW2005	2000	250	1300	850×2000	785×1600	25~35	380V/50HZ, AC 1.5kw	300
HW2006	2000	250	1300	1000×2000	785×1600	25~35	380V/50HZ, AC 1.5kw	293
HW2007	2000	250	1400	1700×1500	1600×1435	25~35	380V/50HZ, AC 2.2kw	415
HW2008	2000	250	1400	2000×1800	1600×1435	25~35	380V/50HZ, AC 2.2kw	500

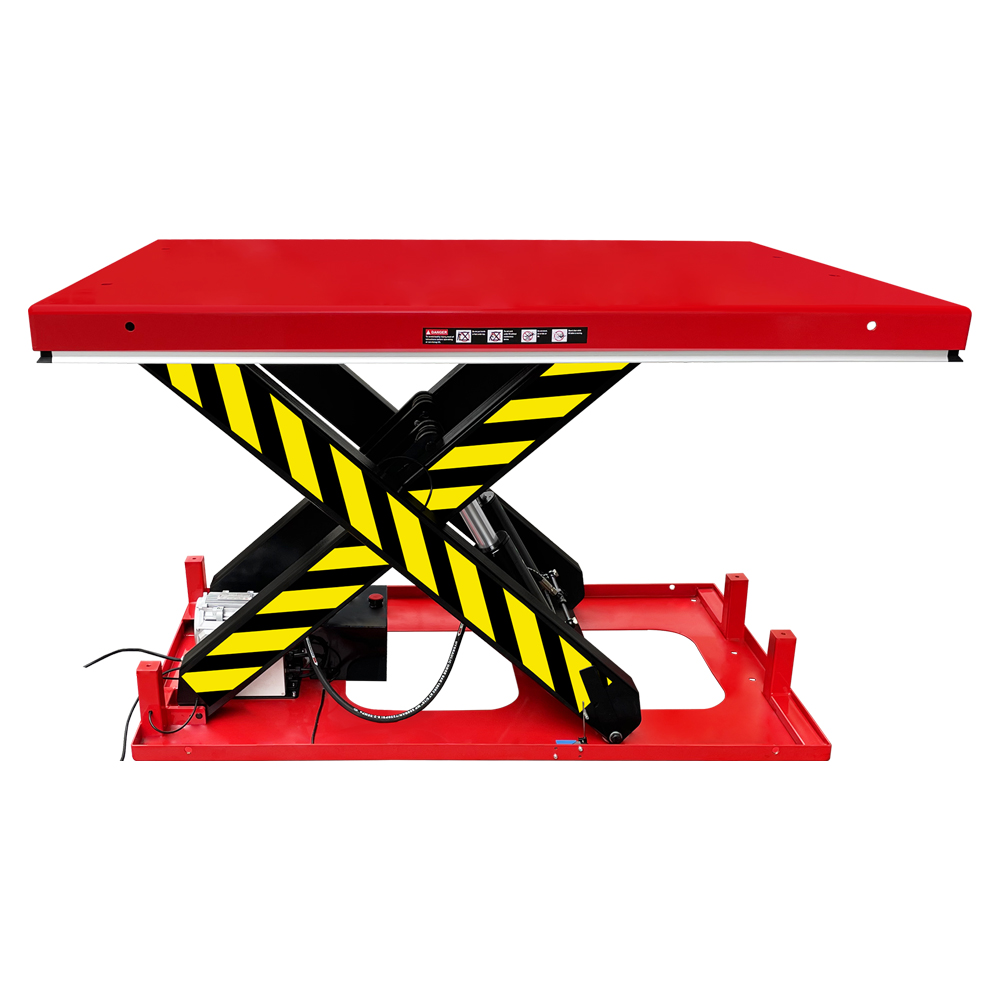

HW4001	4000	240	1050	1200×1700	900×1600	30~40	380V/50HZ, AC 2.2kw	402
HW4002	4000	240	1050	1200×2000	900×1600	30~40	380V/50HZ, AC 2.2kw	405
HW4003	4000	300	1400	1000×2000	900×2000	45~50	380V/50HZ, AC 2.2kw	496
HW4004	4000	300	1400	1200×2000	900×2000	45~50	380V/50HZ, AC 2.2kw	525
HW4005	4000	300	1400	1000×2200	900×2000	45~50	380V/50HZ, AC 2.2kw	585
HW4006	4000	300	1400	1200×2200	900×2000	45~50	380V/50HZ, AC 2.2kw	504
HW4007	4000	350	1300	1700×1500	1620×1400	35~45	380V/50HZ, AC 2.2kw	560
HW4008	4000	350	1300	2200×1800	1620×1400	35~45	380V/50HZ, AC 2.2kw	655
HW5001	5000	380	1150	1200×1700	1600×950	47~57	380V/50HZ, AC 3kw	504
HW5048	5000	400	1600	2400×1200	2030×950	40~50	380V/50HZ, AC 3kw	675
HW6001	6000	380	1150	1700×1000	1600×990	25~35	380V/50HZ, AC 3kw	475
HW6001P	6000	380	1150	1200×1700	1600×980	56~66	380V/50HZ, AC 3kw	549
