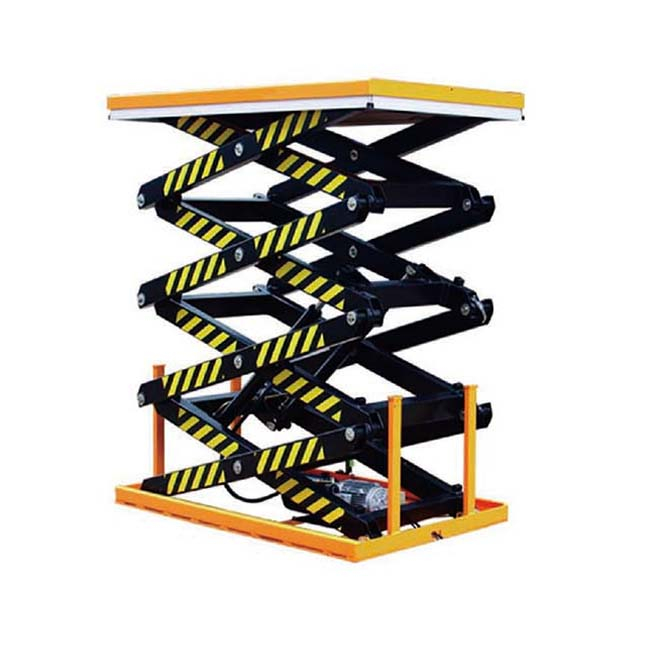

Four Scissor Lift Table HF Series

Availability:
Quantity:
Inquire Add to Basket

  • Heavy duty design.

  • High quality power unit from Europe.

  • Conforms to EN1570 and ANSI/ASME safety standard.

  • Safety clearance between scissors to prevent from trapping.

  • Installed aluminum safety bar to prevent from trapping while descending.

  • BuiIt-in reIief vaIve and compensation low controI vaIve to fuIfiII overIoad protection and control lowering speed.

  • There is safety valve to stop the table or keep slow descending in case of hose burst.

  • Self-lubricating bushing in all pivot points to prolong the lifespan.


Model

HF400

HF800

HF1600

HF2000

Capacity

(kg)

400

800

1600

2000

Min. Height

(mm)

600

710

800

950

Max. Height

(mm)

4100

4100

4250

4800

Platform Size

(mm)

1700×1000

1700×1000

1700×1200

2000×1200

Base Size

(mm)

1600×1000

1606×1010

1610×1140

2000×1200

Raising Time

(s)

30~40

75~85

50~65

90~95

Descending Time

(s)

30~40

75~85

70~85

75~80

Power Pack


AC380V, 2.2KW

AC380V, 2.2KW

AC380V, 2.2KW

AC380V, 3KW

Net Weight

(kg)

457

530

725

920
