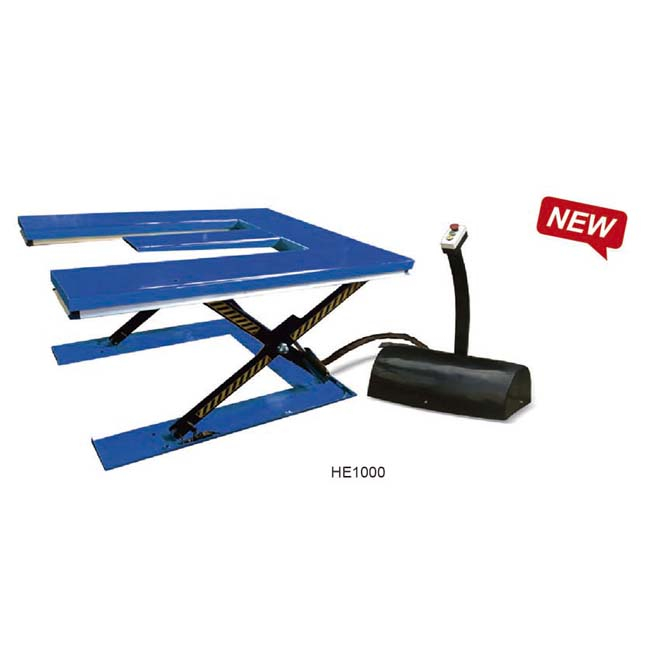

Low Profile Lift Table HE Series

Availability:
Quantity:
Inquire Add to Basket

  • These tables achieve a low closed height, eliminating the need for a pit installation.

  • They are manufactured to all european safety standards including En1570: 1999.

  • Remote power pack with pedestal and controls IP54 protection.

  • 4V control box with UP and down buttons and emergency stop.

  • External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed Power supply are AC 380V/50HZ/3phase.

  • Hose burst safety valve to stop the lift table lowering in case of hose breakage.


Model

HE500

HE1000

HE1500

HE2000

Capacity

(kg)

500

1000

1500

2000

Platform Size

L×W (mm)

1400×1200

1400×1200

1500×1300

1500×1300

Min. Height

(mm)

85

85

85

100

Max. Height

(mm)

885

885

885

820

Stroke

(mm)

800

800

800

720

Lifting Time

(s)

25-30

25-30

30-40

30-40

Power Pack


380V/50HZ, 0.75KW

380V/50HZ, 1.1KW

380V/50HZ, 2.2KW

380V/50HZ, 2.2KW

Net Weight

(kg)

207

280

380

500
