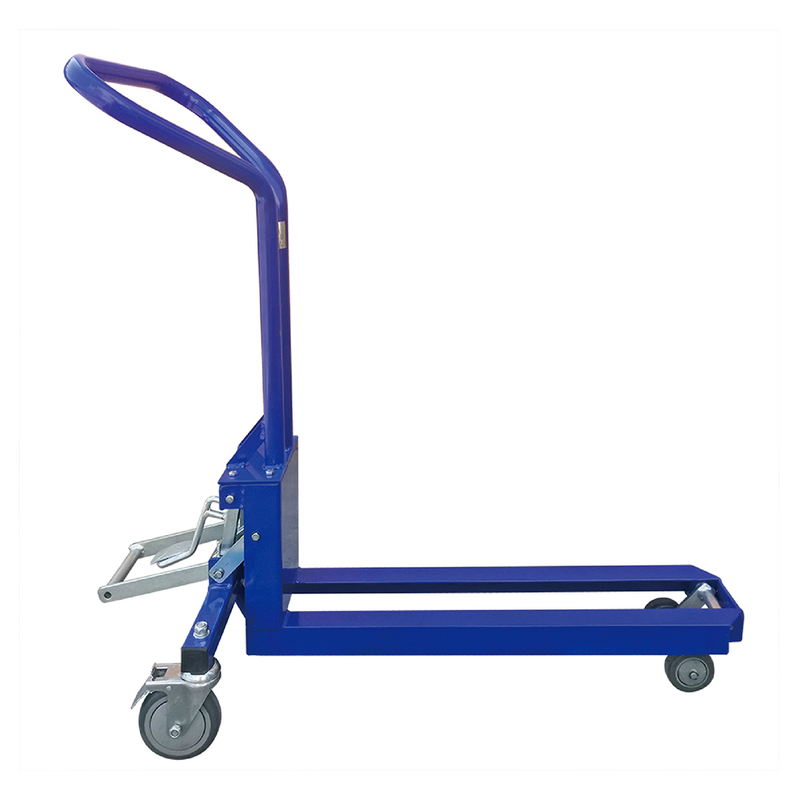

For moving and transporting dispIay paIIets, fruit paIIet, etc.
Large wheels of polyurethane ensuring an excellent manoeuvrability.
Model | MR200 | MR200-A | MR200-B | |
Capacity | (kg) | 200 | ||
Max. / Min. Platform Height | (mm) | 120/95 | ||
Front Wheel | Dia.×W (mm) | Ø75×32 | ||
Rear Castor | Dia.×W (mm) | Ø125×32 | ||
Fork Size | L×W (mm) | 580×210 | 600×190 | 750×190 |
Platform Size | (mm) | 215×575 | 190×600 | 190×750 |
Overall Size | (mm) | 920×510×1040 | 940×510×1040 | 1090×510×1040 |
Net Weight | (kg) | 21 | 24 | 26 |
For moving and transporting dispIay paIIets, fruit paIIet, etc.
Large wheels of polyurethane ensuring an excellent manoeuvrability.
Model | MR200 | MR200-A | MR200-B | |
Capacity | (kg) | 200 | ||
Max. / Min. Platform Height | (mm) | 120/95 | ||
Front Wheel | Dia.×W (mm) | Ø75×32 | ||
Rear Castor | Dia.×W (mm) | Ø125×32 | ||
Fork Size | L×W (mm) | 580×210 | 600×190 | 750×190 |
Platform Size | (mm) | 215×575 | 190×600 | 190×750 |
Overall Size | (mm) | 920×510×1040 | 940×510×1040 | 1090×510×1040 |
Net Weight | (kg) | 21 | 24 | 26 |
