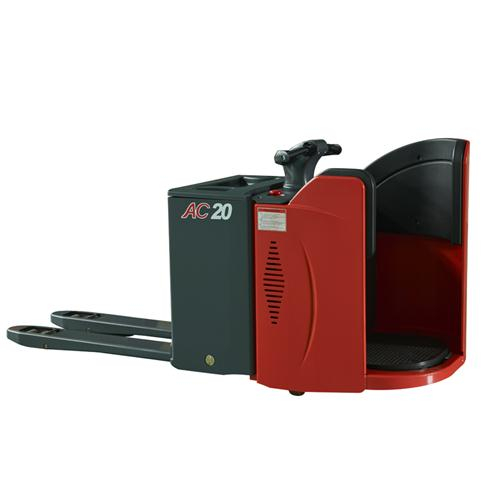

1.Corning Speed, automatic reduces the driving speed when turning in corner.
2.Better Protection for operators. The driver stands inside the steer structure, lower risk of hurt.
3.Floating Driving system ensure the comfortable operating feeling.
4.Easy replace load-wheel
5.AC Curtis transistor controller
6.Big capacity of battery for lone time labour
7.High performance AC driving Motor,
8.Liftstar EPS controller, you can move the handle by one figer
9.Slideway battery design
Model | HSY20 | |
Load capacity | kg | 2000 |
Load center | mm | 600 |
Wheel base | mm | 1569 |
Operating type | Walkie / Stand On | |
Wheels | ||
Wheels type | PU | |
Wheel quantity | 2001/2/4 | |
Driving wheel/ | ||
Balance wheel /Bearing wheel | ||
Driving wheel size | mm | ¢248×75 |
Balance wheel size | mm | ¢84×80 |
(Double wheels) | ||
Bearing wheel size | mm | ¢140×60 |
Dimension | ||
Min.fork lowered height | mm | 85 |
Max.fork lifting height | mm | 205 |
Max.lifting height | mm | 120 |
Overall fork width | mm | 550/600/685 |
Fork length | mm | 1150/1200 |
Fork width | mm | 165 |
Fork thickness | mm | 75 |
Overall length | mm | 2465 |
Overall width | mm | 790 |
Overall height | mm | 1170 |
(With handle) | ||
Overall height | mm | - |
(Without handle) | ||
Min.Turning radius | mm | 2278 |
Min.Aisle width for | mm | 2568 |
pallets 800×1200 | ||
Min.Aisle width for | mm | 2589 |
pallets 1000×1200 | ||
Performance | ||
Travel speed,laden/unladen | km/h | 10/10 |
Lift speed,laden/unladen | mm/s | 20/25 |
Lowering speed,laden/unladen | mm/s | 40/30 |
Gradeability,laden/unladen | % | 15/10 |
Electrical configuration | ||
Drive motor | KW | AC 3 |
Lift motor | KW | DC 1.2 |
Steering motor | KW | DC 0.15 |
Battery | V/Ah | 24/320 |
Brake | Electromagnetic / Regenerative | |
Controller | CURTIS 1234 | |
Weight | ||
Battery weight | kg | 288 |
Service weight with | kg | 968 |
battery |
