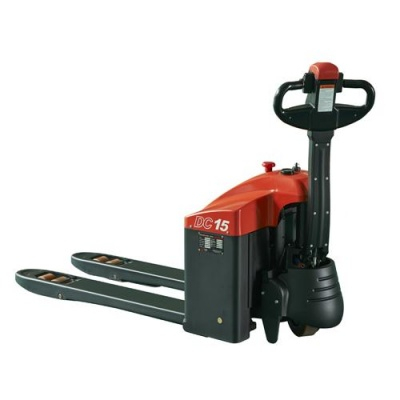

You are here: Home » Products » Pallet Trucks » Electric Pallet Truck » Mini Electric Pallet Truck CEY15A

Products

SEARCH

Share to:

- Capacity:1500kg, DC power,light-duty conditions

- Fit for small work space,double-side pallet can use

- Maintenance-free battery/easy replance/inner charger

- Replace hand pallet truck, load/unload on vehicles

- Low voltage protection, truck will stop if voltage is lower,

make truck/battery with long using life

- Emergecy stop/hour meter/Battery level indicator

Model		CEY15A
Load capacity	kg	1500
Load center	mm	600
Wheel base	mm	1301
Operating type		Walkie
Wheels
Wheels type		PU
Wheel quantity		1/0/4
Driving wheel/Balance wheel /Bearing wheel		1/0/4
Driving wheel size	mm	￠252*67
Balance wheel size	mm	￠84×70 （Double wheels）
Balance wheel size	mm	￠84×70 （Double wheels）
Bearing wheel size	mm	-
Dimension
Min.fork lowered height	mm	85
Max.fork lifting height	mm	205
Max.lifting height	mm	120
Outside width between forks	mm	550/685
Inside width between forks		230/365
Fork length	mm	1150/1200
Fork width	mm	160
Fork thickness	mm	55
Overall length	mm	1707
Overall width	mm	697
Overall height(With handle)	mm	1181
Overall height(Without handle)	mm	714
Min.Turning radius	mm	1547
Min.Aisle width for pallets 800×1200	mm	1920
Min.Aisle width for pallets 1000×1200	mm	1953
Performance
Travel speed,laden/unladen	km/h	3/3.5
Lift speed,laden/unladen	mm/s	56/60
Lowering speed,laden/unladen	mm/s	57/59
Gradeability,laden/unladen	%	5/7
Electrical configuration
Drive motor	KW	DC 0.63
Lift motor	KW	DC 0.8
Battery voltage / capacity	V/Ah	24/70
Brake		Electromagnetic / Regenerative
Weight
Battery weight	kg	48
Service weight with battery	kg	275
