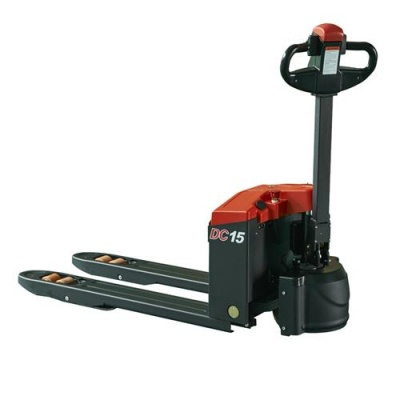

Mini Electric Pallet Truck CEY15B

Data Sheet:
017-018.pdf

Availability:

Quantity:



Inquire Add to Basket

Product Description

Capacity:1500kg, DC power,light-duty conditions.
Fit for small work space,double-side pallet can use.
Maintenance-free battery/easy replance/inner charger.
Replace hand pallet truck, load/unload on vehicles.
Low voltage protection, truck will stop if voltage is lower, make truck/battery with long using life.
Emergecy stop/hour meter/Battery level indicator.

*Model*		CEY15B
*Load* *Capacity*	(kg)	1500
*Load* *Center*	(mm)	600
*WheelBase*	(mm)	1285/1235
*Wheels* *Type*		PU
*Wheel* *Quantity* *Driving Wheel/* *Balance Wheel/* *Bearing Wheel*		1/0/4
*Driving Wheel* *Size*		Φ210×70
*Balance* *Wheel* *Size*	(mm)	Ø84×70 Double
*Balance* *Wheel* *Size*	(mm)	Ø80×101 Single
*Min. Fork* *Lowered* *Height*	(mm)	85
*Max. Fork* *Lifting Height*	(mm)	205
*Max. Lifting* *Height*		120
*Outside* *Width between Forks*	(mm)	550
*Inside* *Width between Forks*	(mm)	390
*Fork* *Length*	(mm)	1150/1200
*Fork Width*		160
*Fork Thickness*	(mm)	73
*Overall* *Length*	(mm)	1648/1698
*Overall Width*	(mm)	570
*Overall* *Height(With handle)*	(mm)	1213
*Overall* *Height(Without handle)*	(mm)	634
*Min.* *Turning Radius*	(mm)	1414/1464
*Min.* *Aisle Width for* *Pallets 800×1200*	(mm)	1728/1778
*Min.* *Aisle Width for* *Pallets* *1000×1200*	(mm)	1764/1814
*Travelling Speed* *(laden* / *unladen)*	(km/h)	3.5/4
*Lifting Speed* *(laden* / *unladen)*	(mm/s)	20/25
*Lowering Speed* *(laden* / *unladen)*	(mm/s)	40/30
*Gradeability* *(laden* / *unladen)*	(%)	5/7
*Driving* *Motor*	(KW)	DC0.65
*Lifting* *Motor*	(KW)	DC0.8
*Steering Motor*	(KW)	-
*Battery Voltage* / *Capacity*	(V/Ah)	24V/65Ah
*Brake*		Electromagnetic
*Battery Weight*	(kg)	100
*Service* *Weight with Battery*	(kg)	210
