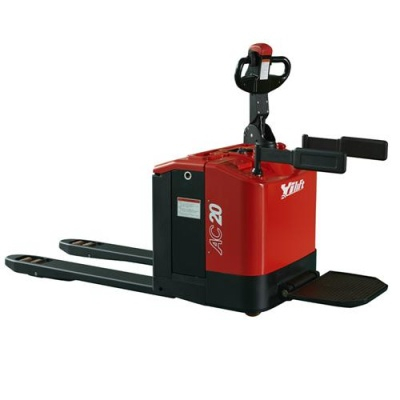

Rider Electric Pallet Truck CEY20RE/25RE/30RE with EPS System

Availability:
Quantity:
Inquire Add to Basket

- Capacity: 2000/2500/3000kg, with AC control systm and EPS System (Electric Powe Steering)

- Stable quality make sure for long-distance operation

- Large battery capacity 24V/280Ah is operation, fit for long time use and heavy-duty loading

- Foldable & Anti-skip platform and  protection arms make operation convenient, safe and efficient

- With Hourmeter and BDI(Battery Discharge Indicator) inform the operation battery and working status

- Durable and rigid construction ensure the trucks to handle heavy loads

- Sidey battery exchange

Model
CEY20RE/25RE/30RE
Load capacitykg2000/2500/3000
Load centermm600
Wheel basemm1493
Operating type
Stand On
Wheels

Wheels type
PU
Wheel quantity
2001/2/4
Driving wheel/Balance wheel /Bearing wheel
Driving wheel sizemm￠248×75
Balance wheel sizemm￠84×80
（Double wheels）
Bearing wheel sizemm￠115x55
Dimension

Min.fork lowered  heightmm85
Max.fork lifting heightmm205
Max.lifting heightmm120
Overall fork widthmm550/600/650/685
Fork lengthmm1150/1200
Fork widthmm170
Fork thicknessmm75
Overall lengthmm1916/2333
Overall widthmm790
Overall heightmm1455
(With handle)
Overall heightmm845
(Without handle)
Min.Turning radiusmm1746/2158
Min.Aisle width for pallets 800×1200mm2046/2435
Min.Aisle width for pallets 1000×1200mm2077/2458
Performance

Travel speed,laden/km/h5/5
unladen
Lift speed,laden/unladenmm/s20/25
Lowering speed,laden/mm/s40/30
unladen
Gradeability,laden/unladen%5/7
Electrical configuration

Drive motorKWAC  1.5
Lift motor  KWDC  1.2
Steering motorKWDC  0.15
Battery voltage / capacityV/Ah24/270
Brake
Electromagnetic/
Regenerative
Controller
CURTIS
Weight

Battery weightkg245
Service weight with batterykg830
