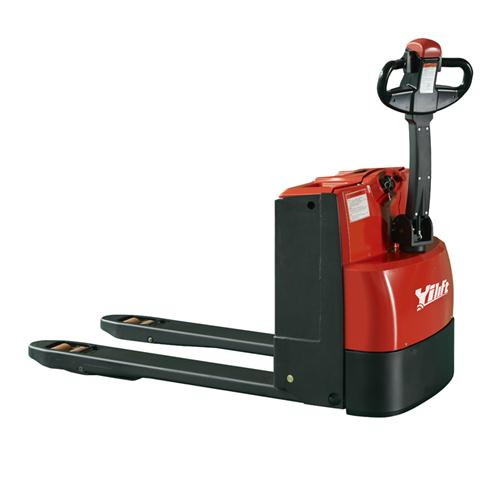

You are here: Home » Products » Pallet Truck & High Lift » Walkie Electric Pallet Truck CEY18/20W

Product Category

Related Products

Share to:

Ddouble-side pallet can be used.
AC free maintenance motor, without carbon brush.
SmaII turning radius, ﬁt for narrow space.
EIectric Iifting, rapid, efficient, Iimited switch.
Outerside charger.
Low VoItage protection, truck wiII stop if VoItage is Iower, make truck/battey with Iong using Iife.
Emergecy stop/hour meter/Battey IeVeI indicator.

*Model*		CEY18/20W
*Load* *Capacity*	(kg)	1800/2000
*Load* *Center*	(mm)	600
*WheelBase*	(mm)	1300
*Operating Type*		Walkie
*Wheels* *Type*		PU
*Wheel* *Quantity* *Driving Wheel/* *Balance Wheel/* *Bearing Wheel*		1/1/4
*Driving Wheel* *Size*	(mm)	Ø228×75
*Balance* *Wheel* *Size*	(mm)	Ø84×80(Double wheels)
*Bearing Wheel* *Size*	(mm)	Ø115×55
*Min. Fork* *Lowered* *Height*		85
*Max. Fork* *Lifting Height*	(mm)	195
*Max. Lifting* *Height*	(mm)	100
*Overall* *Fork Width*	(mm)	550/600/650/685
*Fork* *Length*		1150/1200
*Fork Width*	(mm)	170
*Overall* *Length*	(mm)	1650
*Overall Width*	(mm)	725
*Overall* *Height(With handle)*	(mm)	1380
*Overall* *Height(Without handle)*	(mm)	890
*Min.* *Turning Radius*	(mm)	1450
*Min.* *Aisle Width for* *Pallets 800×1200*	(mm)	1866
*Min.* *Aisle Width for* *Pallets* *1000×1200*	(mm)	1921
*Travelling Speed* *(laden* / *unladen)*	(km/h)	3.5/4.0
*Lifting Speed* *(laden* / *unladen)*	(mm/s)	20/25
*Lowering Speed* *(laden* / *unladen)*	(mm/s)	40/30
*Gradeability* *(laden* / *unladen)*	(%)	5/7
*Driving* *Motor*	(KW)	AC 0.95
*Lifting* *Motor*	(KW)	DC1.2
*Steering Motor*	(KW)	-
*Battery Voltage* / *Capacity*	(V/Ah)	24/210
*Brake*		Electromagnetic / Regenerative
*Controller*		CURTIS
*Battery Weight*	(kg)	202
*Service* *Weight with Battery*	(kg)	552
